SDX3™ SmartView
Combining Skyline’s premium SDX3 smart glass and SmartView window framing system into one package.
...Read more
Glass Size:
Max. 15 sqft (70" max length) for 9.9mm thickness
Max. 59" x 96" for 11.5mm thickness
Min. 7" x 22"
Max. 59" x 96" for 11.5mm thickness
Min. 7" x 22"
Glass Types:
Annealed, Tempered, Clear
Frame Sizes:
42” x 72”
42” x 60”
36” x 48”
32” x 48”
24” x 36”
14” x 38”
42” x 60”
36” x 48”
32” x 48”
24” x 36”
14” x 38”
Decoration:
Eco-etch
Digital Printing
Digital Printing
Switch:
Controller
Turns ON/OFF in less than 100ms
Easy integration with any third-party control systems
Turns ON/OFF in less than 100ms
Easy integration with any third-party control systems
Technology:
Powered by CLiC
Film-free PSCT liquid crystal
Uses less energy than a 25-watt lightbulb
Class 3 low voltage
Film-free PSCT liquid crystal
Uses less energy than a 25-watt lightbulb
Class 3 low voltage
Accolades:
Nightingale Innovation Award 2024
Nightingale Silver Award 2024
Nightingale Silver Award 2024
Combining Skyline’s premium SDX3 smart glass and SmartView window framing system into one package.

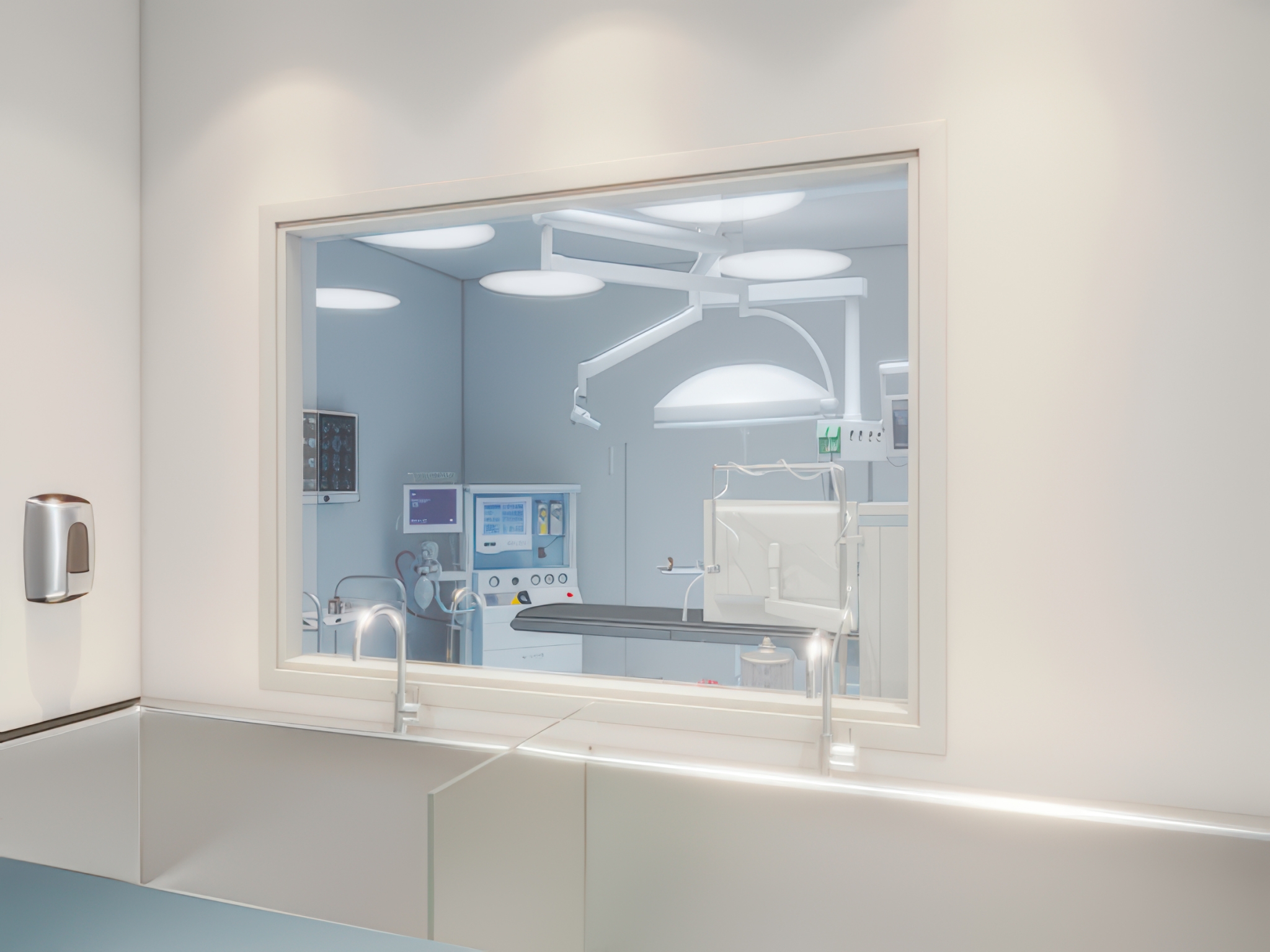

SDX3™ SmartView offers unmatched clarity from any angle and instant transitions from clear to private, SDX3 is specifically designed for viewing windows in healthcare spaces.
- Ideal for healthcare spaces
- Easy to disinfect: Liquid crystal layer is inside the laminated glass
- All materials are safe and non-toxic
- Made in the Midwest, USA
SDX3™ is a proprietary formulation of a liquid crystal that gets applied directly to the glass with no film in between— just a piece of glass, the liquid crystal, and then another piece of glass. It’s much clearer than any other switchable glass on the market.
CLiC integrates state-of-the-art liquid crystal technology with Cardinal’s established proficiency in glass manufacturing and fabrication.
